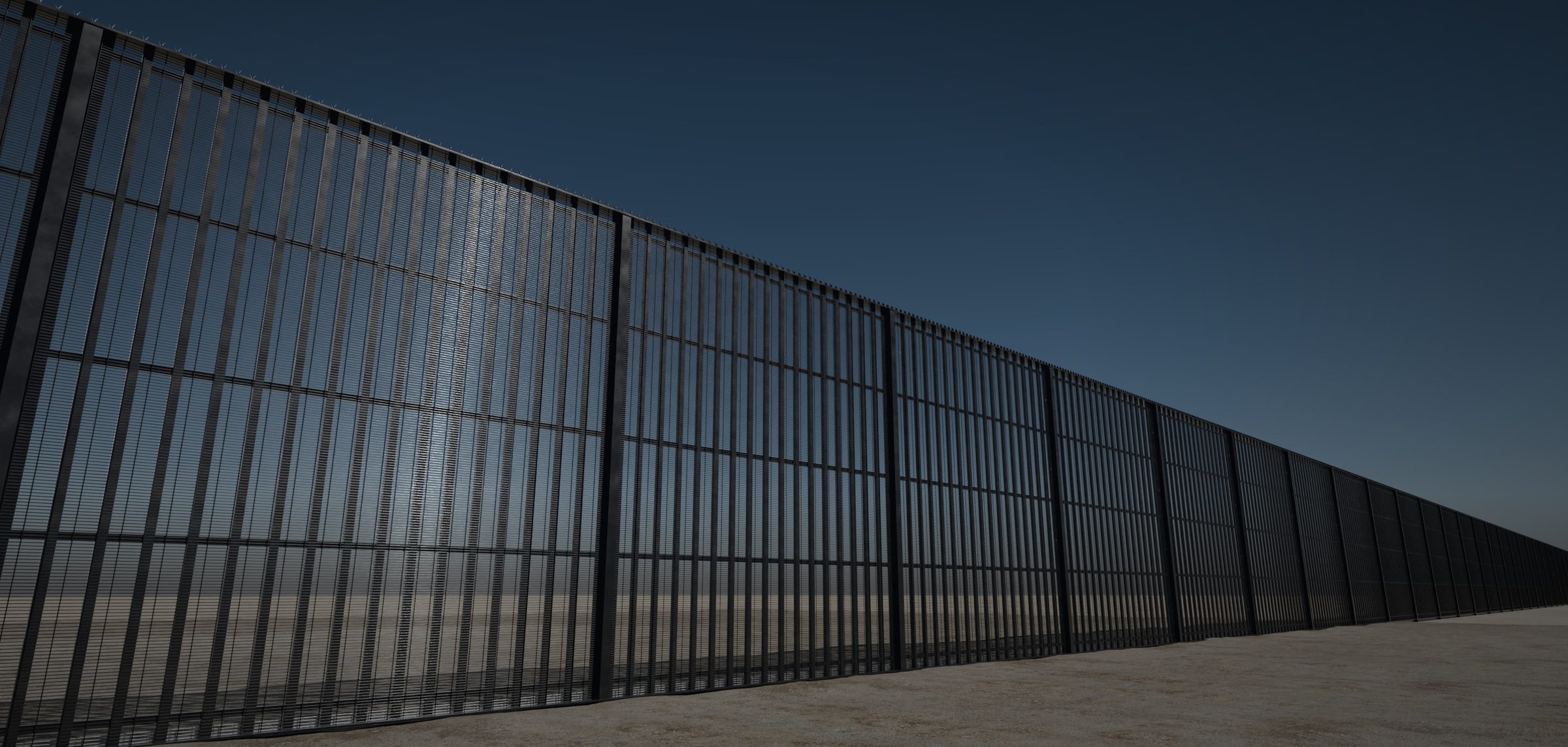

Securomesh APEX high-security fence running to the horizon

    Flagship high-security perimeter system

    Securomesh APEX

    Securomesh APEX high-security fence: Engineered for sites that cannot afford a breach.

    APEX is the highest-security perimeter system we manufacture: a reinforced steel frame and 358 high-security mesh in one heavy, rigid panel, with the option of Securomesh Fortified Infill inside every vertical.

    Watch the filmBrochure (PDF)

    Proven under attack

    100+min

    to breach APEX FORTIFIED with an industrial diamond-blade angle grinder

    9.7t

    CSIR-tested pull load: a half-metre-wide section of APEX mesh held 9.7 tonnes before failing

    250kg

    per FORTIFIED panel (180 kg standard): heavy, security-bolted and impractical to steal

    1.8–4.0m

    panel heights, 2.5–3.0 m wide, made to suit the site

    Independent attack test, April 2025; breach defined as a 200 × 200 mm opening; a reciprocating saw could not penetrate the panel. CSIR tested: tensile test to destruction, August 2025. Panel weights are approximate and vary with height.

    See it in action

    APEX FORTIFIED, layer by layer

    Watch the Fortified Infill drop into every vertical, see how the spike rail and concealed fixings lock the system together, and look below ground at the foundations and underdig.

    Film coming soon

    Meanwhile, book a site visit and we'll walk you through APEX in person.

    Cut-away of APEX verticals showing the Fortified Infill core, magnified to show it blunting a cutting blade
    Fortified Infillfills every verticalCut-resistant coreblunts grinder discs and saw blades

    Inside APEX FORTIFIED

    A cut-resistant core in every vertical

    Securomesh Fortified Infill is a proprietary infill, specifically developed for APEX. It sits inside each steel vertical, out of sight and out of reach.

    When a grinder disc or saw blade reaches the core, its cutting edge is blunted. A quick cut becomes a slow, noisy job, and that delay is what gives your response team time to act.

    In independent testing, an industrial diamond-blade grinder took over 100 minutes to cut a 200 × 200 mm opening through APEX FORTIFIED. A reciprocating saw could not penetrate it.

    Fortify-ready

    Start with APEX and add the infill to the installed fence at any time, without replacing panels.

    Anatomy of APEX

    Engineered in every layer

    Indicative 3.0 m elevation of an APEX bay with numbered features
    1. 1

      Spike-rail topping

      Integrated climb-deterrent crown along the top of every panel.

    2. 2

      Heavy steel verticals

      A reinforced box-section frame that keeps the panel rigid under attack.

    3. 3

      358 high-security mesh skin

      76.2 × 12.7 mm aperture: very hard to grip, climb or cut with hand tools.

    4. 4

      Fortified Infill core

      Inside every vertical on APEX FORTIFIED, out of sight and out of reach.

    5. 5

      Concealed security fixings

      Security bolts with shear-off nuts, fitted from the secure side only.

    6. 6

      500 mm HD galvanised underdig

      Mesh below ground level that deters tunnelling and burrowing.

    7. 7

      Mass-concrete post bases

      Typically 500 × 500 × 800 mm, set for the site's soil conditions.

    Indicative 3.0 m elevation, viewed from the attack side. Heights, toppings and foundations to specification.

    Choose your level

    One system. Two levels of protection.

    High security

    APEX

    Our heaviest barrier, engineered to make climbing, cutting and tampering extremely difficult.

    • 12.7 mm aperture: very hard to grip, climb or cut with hand tools
    • Heavy 180 kg panels and concealed security fixings deter theft
    • Fortify-ready: add the infill to an installed fence at any time

    Best forindustrial, logistics, utilities and high-value commercial sites

    Maximum security

    APEX FORTIFIED

    Everything in APEX, plus Fortified Infill inside every vertical.

    • Proprietary infill, specifically developed for APEX
    • Dulls grinder discs and saw blades; a reciprocating saw could not penetrate it
    • Maximum delay: more time for your response team to act

    Best formines, cash depots, substations, data centres, correctional sites

    CompareAPEXAPEX FORTIFIED
    Reinforced steel frame + 358 high-security mesh✓✓
    HD galvanised, then 400–650 µm thermoplastic coating✓✓
    Concealed security fixings (secure side)✓✓
    Spike or razor topping, underdig, electric fence, wireless alarmOptionsOptions
    Securomesh Fortified Infill in every verticalFortify-ready✓
    Approximate panel weight180 kg250 kg
    Independent attack test (industrial diamond-blade grinder)—100+ min to breach

    Specification

    Built to specification

    Panel heights
    1.8 · 2.0 · 2.1 · 2.4 · 3.0 · 4.0 m
    Panel widths
    2.5 – 3.0 m
    Mesh
    358 high-security mesh, 76.2 × 12.7 mm aperture
    Wire
    4–6 mm vertical, 3.15–4 mm horizontal; min. tensile strength 485 MPa
    Frame
    Reinforced steel box-section subframe
    Posts
    101.6 × 60 mm T-post or 100 × 55 IPE
    Finish
    HD galvanised, then 400–650 µm thermoplastic coating (fluidised bed)
    Fixings
    Concealed security bolts: shear-off nut & cup-square, or Torx security
    Infill (FORTIFIED)
    Securomesh Fortified Infill, a proprietary cut-resistant core
    Panel weight
    ≈ 180 kg APEX · ≈ 250 kg FORTIFIED (height dependent)
    Foundations
    Mass-concrete post bases, typically 500 × 500 × 800 mm
    Options
    500 mm HD galvanised underdig, spike or razor topping, electric fence, wireless sensor alarm
    Download the APEX brochure (PDF)

    The Securomesh security range

    Not every site needs APEX.

    We match the level of protection to your risk and budget, from ParkMesh to APEX FORTIFIED.

    Explore the range

    ParkMesh LOW

    ParkMesh MED

    Securomesh 3510

    Securomesh 358

    Double Skin 358

    APEX

    APEX FORTIFIED

    Built for

    Mining & precious metalsPower utilities & substationsRail, ports & logisticsData centresCorrectional, police & defenceCash & valuables depotsFuel & chemical depotsCritical infrastructure
    Proudly South AfricanCIDB SQ9B-BBEE Level 1 contributor

    Designed, manufactured and installed by Securomesh in South Africa.

    Questions

    Frequently asked questions

    Can APEX be cut or climbed?

    No barrier is impossible to defeat with enough time and tools. APEX is engineered to make climbing, cutting and tampering extremely difficult and slow. In an independent attack test, APEX FORTIFIED took over 100 minutes to breach with an industrial diamond-blade angle grinder, which is time your security response can use.

    What is the difference between APEX and APEX FORTIFIED?

    APEX is our heaviest reinforced steel and 358 high-security mesh barrier. APEX FORTIFIED adds Securomesh Fortified Infill inside every vertical: a proprietary cut-resistant core that blunts grinder discs and saw blades.

    Can I upgrade APEX to APEX FORTIFIED later?

    Yes. APEX is fortify-ready, so the infill can be added to an installed fence at any time. You can upgrade in a later budget cycle without replacing panels.

    How heavy are APEX panels?

    About 180 kg per panel, or roughly 250 kg with Fortified Infill, depending on height. Together with concealed security fixings, that makes panel theft impractical.

    What heights and finishes are available?

    Panels are made from 1.8 m to 4.0 m high and 2.5 to 3.0 m wide. Every panel is HD galvanised and then thermoplastic coated (400–650 µm) for a long, low-maintenance life.

    Can APEX be combined with electric fencing or alarms?

    Yes. Options include electric fencing, a wireless sensor alarm, spike or razor topping and a 500 mm HD galvanised underdig.

    Where is APEX made?

    APEX is designed, manufactured and installed by Securomesh in South Africa.
